W1-IonLab-pH
实验室酸度计
87.16.10.05-103
- Large LCD display
formeasurement and temperature - Well-laid-out touch-sensitive
keypad - Resolution up to 0.001 pH
- Built-in printer (optional)
- Built-in datalogger
- GLP supporting functions
such as calibration protocol, calibration monitroring and evaluation of measuring conditions - Built-in real-time clock for documentation
- Documentation and monitoring the calibration intervals
- Short operating instructions inside printer cover
- Connection for temperature sensor
- Corrosion for electrode to DIN 19 262
- Connection for reference electrode
- Corrosion-protected gold-plated plug contacts
- Connection for plug-in power supply
- Bidirectional RS 232 interface and analog output with automatic recognition of connected PC, printer or recorder

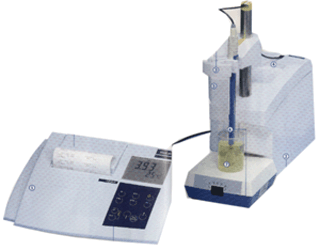

- ①inLab Oxi Level 2
- ②Passive multifunction box
-③Freely adjustable stand head with electrode holder for 2 pH electrodes, temperature sensor and/or oxygen sensor or conductivity cell
④Storage compartment for unused cable
⑤One locking holder accepting one beaker or one electrode, particularly suitable for storing the SenTix electrode between measurements. - ⑥One SenTix electrode as chosen (see ordering information)
- WTW technical buffers pH 4.01-7.00-10.00
- KCL solution (3 mol/l)
- Cleaning solution RL/G
- Electrolyte solution ELY/G
- ⑦Beaker
- Plug-in power supply
- Operating instructions
| Model | pH Level 1 | pH Level 2 | pH Level 3 | pH 540 GLP | |||
| Range/Resolution | pH | 2.000…+16.000
pH -2.00…+16.00 pH |
-2.000…+16.000
pH |
||||
| mV |
-999.9…999.9mV |
-1250…+1250 mV | |||||
| Temp |
0…+99.9℃ |
0…+99.9℃ |
|||||
| Accuracy(±1 digit) | pH |
±0.003 pH±0.01 pH |
±0.003 pH | ||||
| mV |
±0.2 pH |
±1mV | |||||
| Temp |
±0.1K |
±0.1K | |||||
| Temperature compensation pH | 0…+99.9℃ automatically with TFK 150, TFK 325 or pt-1000, or -20…+130℃ if sample temperature entered manually | ||||||
| DIN measurement | —— | pH to DIN 19 268(ASTM) | |||||
| AutoRead | for reproducibility better than 0.02pH | depends on selected Reproducibility | |||||
| Real-time clock | —— | failsafe, lithium battery with working life> 10 years | not volatile, lithium battery battery with life>10years | ||||
| Calibration | MultiCal(R)
automatic calibration AutoCal: automatic 2-point calibration with DIN buffers |
MultiCal(R)
automatic calibration AutoCal: automatic 2/3- point calibration with DINbuffers |
MultiCal(R)
automatic calibration AutoCal: automatic 2 to 5 point calibration with DIN buffers |
||||
|
AutoCal-VAR:
automatic 2 to 5 point calibration with individually selected
buffers. ConCal: conventional 1-/2-point calibration with and buffers |
||||||
| ConCal: conventional 1-/2-point calibration with any buffers | ISECal: 2 and 3 point calibration with standard solutions | ||||||
| Calibration protocol | —— | GLP-conform protocol of calibration; last calibration stored in memory | GLP-conform protocol of calibration; last 3 calibrations stored in memory | ||||
| Calibration timer | —— | adjustable, 1…999 days | adjustable, 1…99 days | ||||
| Sensor evaluation | depends on the calibration results, shown in display | ||||||
| Limit values | —— | freely adjustable for pH, mV and ℃ according to measuring range | |||||
| Data memory | 200 records (measurement, temperature) | 100 records ( measurement, temperature, date/time) | |||||
| Data output | display only | display or intrface | display or intrface | ||||
Analog interface |
—— |
corresponds to electrode potential, i.e. 50…62mV/pH unit | configurable
for pH/mV and temperature: pH:100mV/pH mV:1mV/mV ℃:10mV/K |
||||
| Digital interface | —— | bidirectional RS 232 | bidirectional RS 232 | ||||
| D.S. connection(dead stop) | —— | 600mV no-load voltage 10 μA cut-off current | |||||
| Operating time/Power supply | 3000 h with 4×1.5V universal plug-in power supply 230 VAC or 120 VAC | plug-in power supply 230 VAC or 120 VAC | |||||
| Protection type | IEC 529/IP 43 without built-in printer | IP 54 to IEC 529 | |||||
| Dimensions | 230×210×70mm 250×300×70mm(B×D×H) | 240X220X110mm(BXDXH) | |||||
| Weight | 1.3 kg | 1.6 kg | 1.5 kg | ||||
| Certified to | CE, TÜV/GS, UL, CUL | ||||||
| Warranty | 3 years on the instrument | ||||||
