W1-IonLab
Oxi Level 2实验室溶氧仪
87.16.10.09-102
- Large LCD display for parallel display of measurement and temperature
- Built-in printer (optional)
- Well-laid-out touch-sensitive keypad
- Built-in datalogger
- GLP supporting functions such as calibration protocol, calibration monitoring and evaluation of measuring conditions
- Built-in real-time clock for documentation
- Documentation and monitoring the calibration intervals
- Short operating instructions inside printer cover
- Connection for oxygen sensor CellOx(R) 325 and self-stirring oxygen sensor StirrOx(R)G
- Corrosion-protected gold-plated plug contacts
- Connection for plug-in power supply
- Bidirectional RS 232 interface and analog output with auto-matic recognition of connected PC, printer or recorder

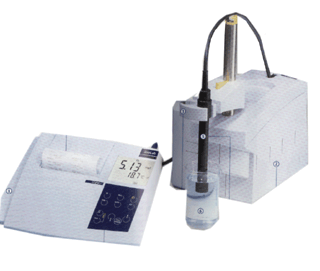

- ①inLab Oxi Level 2
- ②Passive multifunction box
③Freely adjustable stand head with electrode holder for oxygen sensor, temperature sensor and/or 2 pH electrodes or conductivity cell
④Storage compartment for unused cable
One locking holder accepting one beaker or one electrode, particularly suitable for storing the CellOx(R) sensor between measurements. - ⑤One oxygen sensor as chosen (see ordering information)
- OxiCal(R)-SL calibration and storage vessel
- 3 exchange membrane heads WP 90/3
- Cleaning solution RL/G
- Electrolyte solution ELY/G
- Abrasive foil SF 300
- ⑥Beaker
- Plug-in power supply
- Operating instructions
| Model | Oxi Level 2 | Oxi Level 3 | Oxi 3000 | |
| Measuring range/Resolution | O2 conc.: | 0.00…19.99
mg/L 0.0…90.0mg/L* |
O2 conc.: | 0.00…29.99
mg/L 30.0…299.9mg/L* |
| O2 saturation: | 0.0…199.9% 0…600% |
O2 saturation: | 0.0…299.9% 300…900% |
|
| O2 part. press.: | 0.0…199.9
mbar 0…1250 mbar |
O2 part. press.: | 0.0…299.9
mbar 300…1250 mbar |
|
| temperature: | -5.0…+50.0℃ | temperature: | -5.0…+60℃ | |
| *depends on oxygen sensor and medium | *depends on oxygen sensor and | |||
| Accuracy(±1 digit) | O2 conc.: | ±0.5% of value | O2 conc.: | ±0.5% of value |
| O2 saturation: | ±0.5% of value | O2 saturation: | ±0.5% of value | |
| temperature: | ±0.1K | temperature: | ±0.1K | |
| Temp. compensation | 0…+50℃ automatic via IMT compensation | 0…+40℃ automatic via IMT | ||
| Salinity correction | automatic from 0.0…70.0, adjustable via display | automatic from 0.0…99.9, adjustable via display | ||
| AutoRead | for reproducibility better than 0.05 mg/L or better than 1 mbar | |||
| Real-time clock | not affected by power cuts | not affected by power cuts, lithium battery with life>10years | ||
| Calibration | OxiCal(R)- rapid calibration in OxiCal(R)-SL |
|
||
| Data memory | 200 data sets (measurement, temperature, time/date, ident no.); time-controlled storage at intervals from 5s…60 min, data storage period unlimited | —— | ||
| Data output | via display or interface | via display or interface | ||
| Interface | ||||
| analog | self-configuring
as analog output 0-2 V or bidirectional RS 232 |
2 analog outputs for
oxygen value and temperature: 0…2V per range (mg/L,%, mbar) 10mV/mg/L |
||
| digital | unidirectional RS 232 interface 15-pole printer output for WTW printer P 500 | |||
| Other connections |
for StirrOx(R)G (only power supply) and start/stop via key on StirrOx(R) | for StirrOx(R)G with automatic AutoRead start and start/stop via key on StirrOx(R) | 7-pole socket for OxiCal(R)-Auto 19-pole control port for connecting external instruments (e.g sample changer) | |
| Operation time | continuous from mains supply | continuous from mains supply | ||
| Protection type | IEC 529/IP 43 | IP 54 to IEC 529 | ||
| Dimensions (B×D×H in mm) |
300×250×70 | 300×180×140 | ||
| Weight | approx. 1.6 kg | approx. 1.5 kg | approx. 2.8 kg | |
| Certified to | CE, TÜV/GS, UL, CUL | CE, TÜV/GS | ||
| Warranty | 3 years on the instrument | |||
